dspblok 21565 - Analog Devices ADSP-21565 SHARC DSP Module

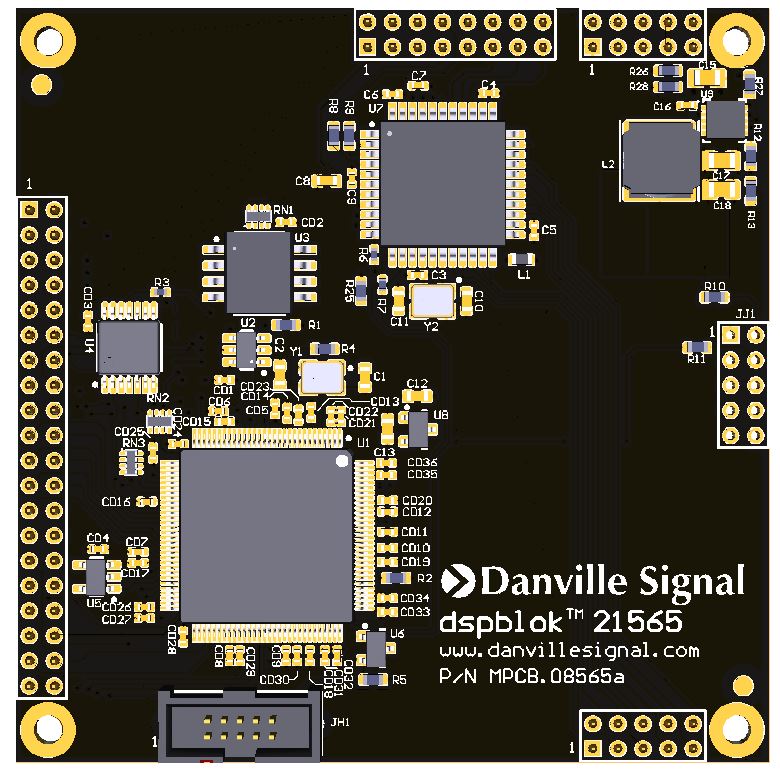

The dspblok™ 21565 is a highly integrated DSP module that incorporates an Analog Devices’ ADSP-21565 SHARC DSP operating at 1 GHz, flash, EEProm, and a switching power supply to support the core voltage requirements. All the connections are brought out to standard 2mm dual row header footprints. The board is only 60mm x 60mm (2.36" x 2.36").

The dspblok 21565 also includes a USB transceiver. You can use the USB to upload DSP code via Danville's dspBootloader™.

Development couldn't be easier. You can connect to an Analog Devices ICE and write your code using Analog Devices CrossCore Embedded Studio. If you are starting a new project or designing your own target, you may want to use the dspblok Development Board. This board is convenient as a starting place to connect other development boards (data converters and I/O). It includes a power supply and computer connections to get you started.


Key Components:

  • Analog Devices ADSP-21565
  • Atmel ATmega32U4
  • Winbond W25Q32 32Mb Serial Flash
  • Microchip 25AA02E48 Serial EEProm with MAC

Exposed I/O (3.3V):

  • DAI0 8-DAI0 1, DAI0 19, DAI0 20
    DAI1 8-DAI1 1, DAI1 19, DAI1 20
  • SPI Master,
    SPI (Master or Slave) or UART
    I2C or UART
  • 32U4 I/O including ADCs, GPIO, I2C, UART
  • JTAG


  • 60mm x 60mm
  • Height: 4mm above PCB, 2mm + 4.3mm (mating header) below PCB
  • PCB Thickness: 1.6mm


  • Dual Row 2mm Headers
  • 10 pin 2x5 ADI JTAG

Power Requirements:

  • 3.3V-600mA, Largely dependent on core clock and computational load.


Additional Resources pdf

dspblok 21565 Step File

Ordering Information:


dspblok 21565

Dev Board


1 GHz

Power Supply & Breakout Connectors

Part Number:

P/N: A.08565A

P/N: A.08102
