dspblok ad96k Family - I/O Modules

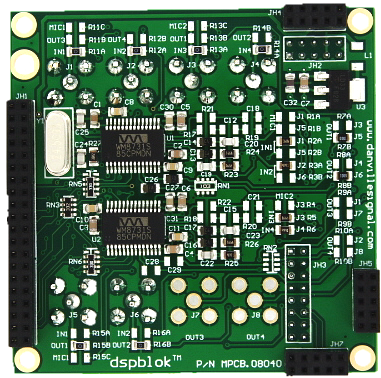

The dspblok ad96k42 & dspblok ad96k22 are small data converter boards that sample at 96k. In conjunction with a dspblok ps-uart board and optional dspblok io-rtc, they are part of a small dspblok mini-stack with a footprint of 60mm x 60mm. Each input and output use SMA connectors to help maintain the small size and provide reliable connections.

These boards were originally designed to work with the now obsolete dspblok 21369. Current systems can use a dspblok 21469 with the pins of JH8 cut off (JH8 didn't exist in the dspblok 21369).

The dspblok 4/2 has 4 audio inputs and 2 audio outputs. The dspblok ad96k22 has 2 audio inputs and 2 audio outputs.

Specifications:

Key Component

  • Cirrus Logic WM8731

Connectors:

  • SMA
  • Dual Row 2mm Headers

Size:

  • 60mm x 60mm
  • Height: 10mm above PCB, 2mm + 4.3mm (mating header) below PCB
  • PCB Thickness: 1.6mm

Ordering Information:

Description:

dspblok ad96k22

dspblok ad96k42

Features:

2 inputs, 2 outputs

4 inputs, 2 outputs

Part Number:

P/N: A.08040-22

P/N: A.08040-42
