dspblok 21469 + USB Audio Class II - Analog Devices ADSP-21469 UAC2 SHARC DSP Module

*The dspblok 21469uac2 is a legacy product. We recommend using the dspblok 21569uac2 as a preferred replacement. Please contact us to discuss an update plan for this DSP Module*

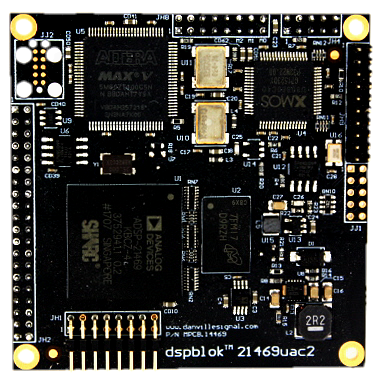

The dspblok™ 21469uac2 combines a powerful floating-point DSP with a dedicated USB Audio Class 2 coprocessor.

An Analog Devices ADSP-21469 SHARC DSP operating at 450 MHz and an XMOS XU208 providing the USB audio support are the heart of the module.

The module includes flash, EEProm, SDRAM, and switching power supplies to support the core voltage requirements. All the connections are brought out to standard 2mm dual row header footprints. The board is only 60mm x 60mm (2.36" x 2.36").

USB Audio Class 2 is supported by Danville supplied Microsoft Windows drivers along with native support in Apple and Linux operating systems. In addition to the USB Audio Class 2 support, Danville has enhanced the USB firmware to include HID endpoints for control. This allows DSP code to be uploaded without a programmer or ICE as well as support for graphical design programs like DSP Concepts Audio Weaver.

The dspblok 21469uac2 is the most powerful version of our fourth generation SHARC based Audio dspbloks. Since it includes SDRAM, it is the best choice for applications where large FIRs or long delay lines are going to be implemented. It is pin-compatible with our dspblok 21489uac2.

Development couldn't be easier. The dspblok 21469uac2 is supported by Analog Devices’ Visual DSP++ or CrossCore Embedded Studio. You can connect to an Analog Devices ICE-1000 or ICE-2000 via JTAG. Our dspblok dev board is a convenient way to get started with breakouts interfacing to your own external circuits.

Alternatively, the dspblok 21469uac2 is available as a sub-component in other Danville products such as the dspNexus family. In this system, the dspblok is graphically programmed via DSP Concepts Audio Weaver.

Specifications:

Key Components:

  • Analog Devices ADSP-21469
  • XMOS XU208 MPU (USB UAC2 Transceiver)
  • Micron MT47H64M16 1Gb DDR2 SDRAM
  • Adesto AT25SF161 16Mb Serial Flash
  • Microchip 25AA02E48 Serial EEProm with MAC Address

Exposed I/O (3.3V):

  • DAI 20 - DAI 5
  • DPI 4, DPI 8, DPI 9, DPI 10
  • DPI 3 - DPI 1  (Assigned as SCK, MISO, & MOSI)
  • FLG1, FLG0, RESET# (Open Drain), OUT2 - OUT0
  • MCLK OUT

Size:

  • 60mm x 60mm
  • Height: 4mm above PCB, 2mm + 4.3mm (mating header) below PCB
  • PCB Thickness: 1.6mm

Connectors:

  • Dual Row 2mm Headers

Power Requirements:

  • 3.3V-400mA, Largely dependent on core clock and computational load.

(See User Manual for more details.)

Ordering Information:

Description:

Standard

JTAG Adapter

dspblok Development Board

Features:

450 MHz, 0 to +70 °C

2mm to ADI 14 pin

Power Supply, Connectors and Expansion

Part Number:

P/N: A.14469

P/N: A.08153

P/N: A.08102B
