dspblok 21469 - Analog Devices ADSP-21469 SHARC DSP Module

*As of 02/07/2022, the dspblok 21469 is currently on a strict allocation basis for our current customers. Please contact us to discuss a suitable replacement for this DSP Module*

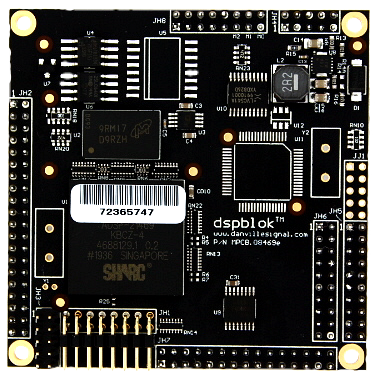

The dspblok™ 21469 is a highly integrated DSP module that incorporates an Analog Devices’ ADSP-21469 SHARC DSP operating at 450 MHz, flash, EEProm, 1Gb DDR2 memory, and a switching power supply to support the core voltage requirements. All the connections are brought out to standard 2mm dual row header footprints. The board is only 60mm x 60mm (2.36" x 2.36").

The dspblok 21469 is also available in an extended temperature (-ET) version. The operating temperature for this variation is -40 to +85 C, with a maximum core clock of 400MHz.

The dspblok 21469 is supported by a family of dspblok power supplies, data converter modules, and digital I/O modules.

Development couldn't be easier. You can connect to an Analog Devices ICE using a Danville JTAG Adapter. Analog Devices has two development packages available: CrossCore Embedded Studio or Visual DSP++.

If you are starting a new project or designing your own target, you may want to use the dspblok Development Board. This board is convenient as a starting place to connect other development boards (data converters and I/O). It includes a power supply and computer connections to get you started.


Key Components:

  • Analog Devices ADSP-21469
  • Micron MT47H64M16 1Gb DDR2 SDRAM
  • Adesto AT25SF161 16Mb Serial Flash
  • Microchip 25LC640 Serial EEProm

Exposed I/O (3.3V):

  • DAI 20-DAI 1
  • DPI 14-DPI 7, DPI 4
  • DPI 3-DPI 1  (Assigned as SCK, MISO, & MOSI)
  • FLG1, FLG0, RESET# (Open Drain)
  • DATABUS: D7-D0, A23-A0, RD#, WR#, ACK, MS3#-MS1#


  • 60mm x 60mm
  • Height: 4mm above PCB, 2mm + 4.3mm (mating header) below PCB
  • PCB Thickness: 1.6mm


  • Dual Row 2mm Headers

Power Requirements:

  • 3.3V-400mA, Largely dependent on core clock and computational load.

(See User Manual for more details.)

Ordering Information:



Extended Temperature

JTAG Adapter

dspBlok Development Board


450 MHz, 0 to +70 °C

400 MHz, -40 to +85 °C

2mm to ADI 14 pin

Power Supply, Connectors and Expansion

Part Number:

P/N: A.08469E

P/N: A.08469E-ET

P/N: A.08153

P/N: A.08102B

Clock Options:

Standard Configuration

Crystal for Standard Bauds

Standard Digital Audio Clock

Standard Operating Core Clock

External Clock

22.1184 MHz

24.576 MHz

25.000 MHz

No Append

Append -22.1184 to P/N

Append -24.576 to P/N

Append -25.000 to P/N
